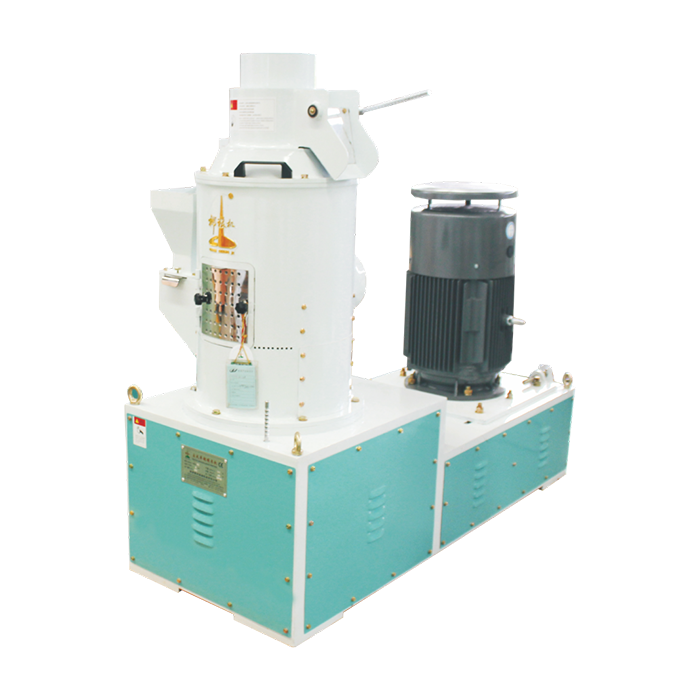

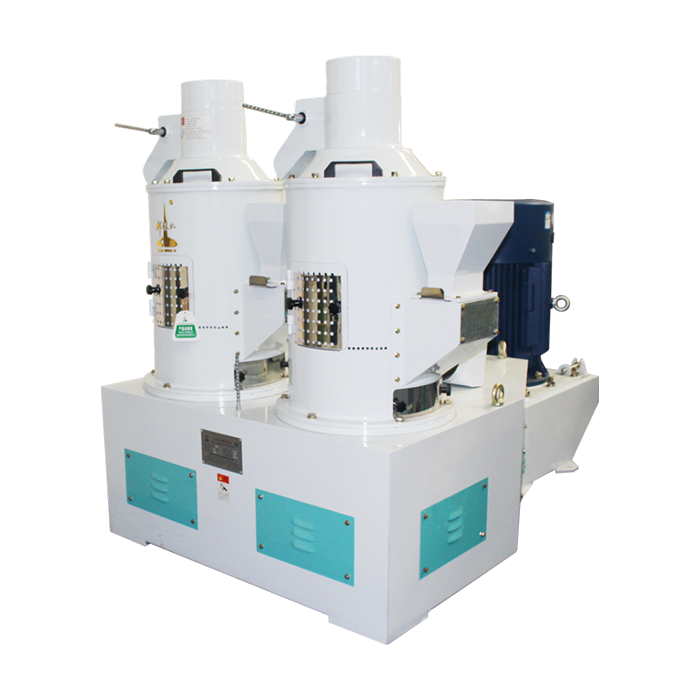

Vertical sand roller grinder

The grinding room adopts a bottom-in, top-out feeding method, with multiple units connected in series. No elevator is needed in between, resulting in a small footprint. The material flow direction can be from left to right or from right to left.

Keywords:

0086-735-2473888

Product Message

Product Introduction

Product Features

The grinding chamber adopts a bottom-inlet top-outlet method, with multiple units connected in series. No elevator is needed between units, resulting in a small footprint; the material flow direction can be left-in right-out, or right-in left-out.
Compared to horizontal hulling and rice milling machines, this series of vertical models offers better uniformity in hulling and whitening, and higher rice yield.
Equipped with an external medium-pressure fan for efficient bran removal, resulting in lower material temperature and improved efficiency.

Main Technical Parameters

Model		MNSL-□□-21.5/21.5	MNSL-□□-16
Output (t/h)	Corn grits production	1-2	1-2
Power (kW)	Corn grits production	30-37	18.5-22
Air suction (m ³ /h)		2500-3000	1600-2100
Weight (kg)		1040	620
Dimensions (Length × Width × Height) (mm)		1705 ×1160 ×1400	1300 ×600 ×1400
