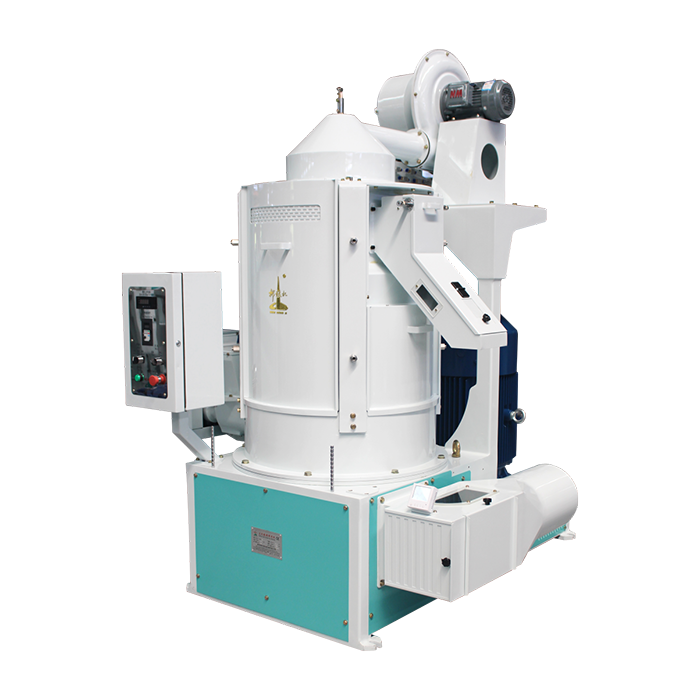

Vertical air-jet iron roller polishing machine
This series of upright models has good uniformity in rice milling (grinding) and high rice yield.
Keywords:
Product Introduction
Product Features
- The grinding chamber adopts a bottom-inlet top-outlet method, with multiple units in series processing, eliminating the need for an elevator in between, resulting in a small footprint; the material flow direction can be left-in right-out, or right-in left-out.
- This series of vertical models boasts excellent uniformity in rice whitening (milling) and high rice yield.
- Auger-assisted feeding ensures uniform output, unaffected by air volume fluctuations.
- The entire machine exhibits high rigidity, ensuring smoother operation.
- The combination of an integrated air-blowing fan and an external medium-pressure fan creates a combined blowing and suction airflow method. Compared to a solely suction method, this allows for more uniform tumbling of particles within the rice milling chamber, resulting in better whitening uniformity.
- Cleaner bran removal, lower material temperature at the machine outlet, and better overall results.
Main Technical Parameters
Model |
MNTL-21 |
MNTL-26B |
MNTL-28A |
MNTL-30 |
|
Output (t/h) |
Millet Rice Milling |
2.5~5 |
4~7 |
- |
- |
Corn Milling |
3~4 |
4.5~5.5 |
5.5-7.5 |
7.5~9 |
|
Power (kW) |
Millet Rice Milling |
37~45 |
45~55 |
- |
- |
Corn Milling |
37~45 |
45~55 |
55~75 |
75~90 |
|
Air Suction (m 3 /h) |
2400 |
3000 |
3000 |
3600 |
|
Weight (kg) |
1310 |
1770 |
1850 |
2280 |
|
Equipment Dimensions (L ×W×H) (mm) |
1430×1390×1920 |
1560×1470×2250 |
1560×1470×2300 |
1560×1590×2330 |
|
Main Applications |
Millet rice milling and corn milling. |
